Advanced Fracturing Equipment Fleet

Enough capacity to support usable fluid requirement of at well Site.
Each tank with 500 bbl capacity, 8" suction manifold and 4" outlet/inlet
Rail walk way on the top of the tank
Front stairs, front and back roof hatches as well as rear ladder
Compatibility with various types of fluids that are utilized in the performance of Hydraulic Fracturing and/or Stimulation Services
Lined (corrosion protection)
Enclosed design

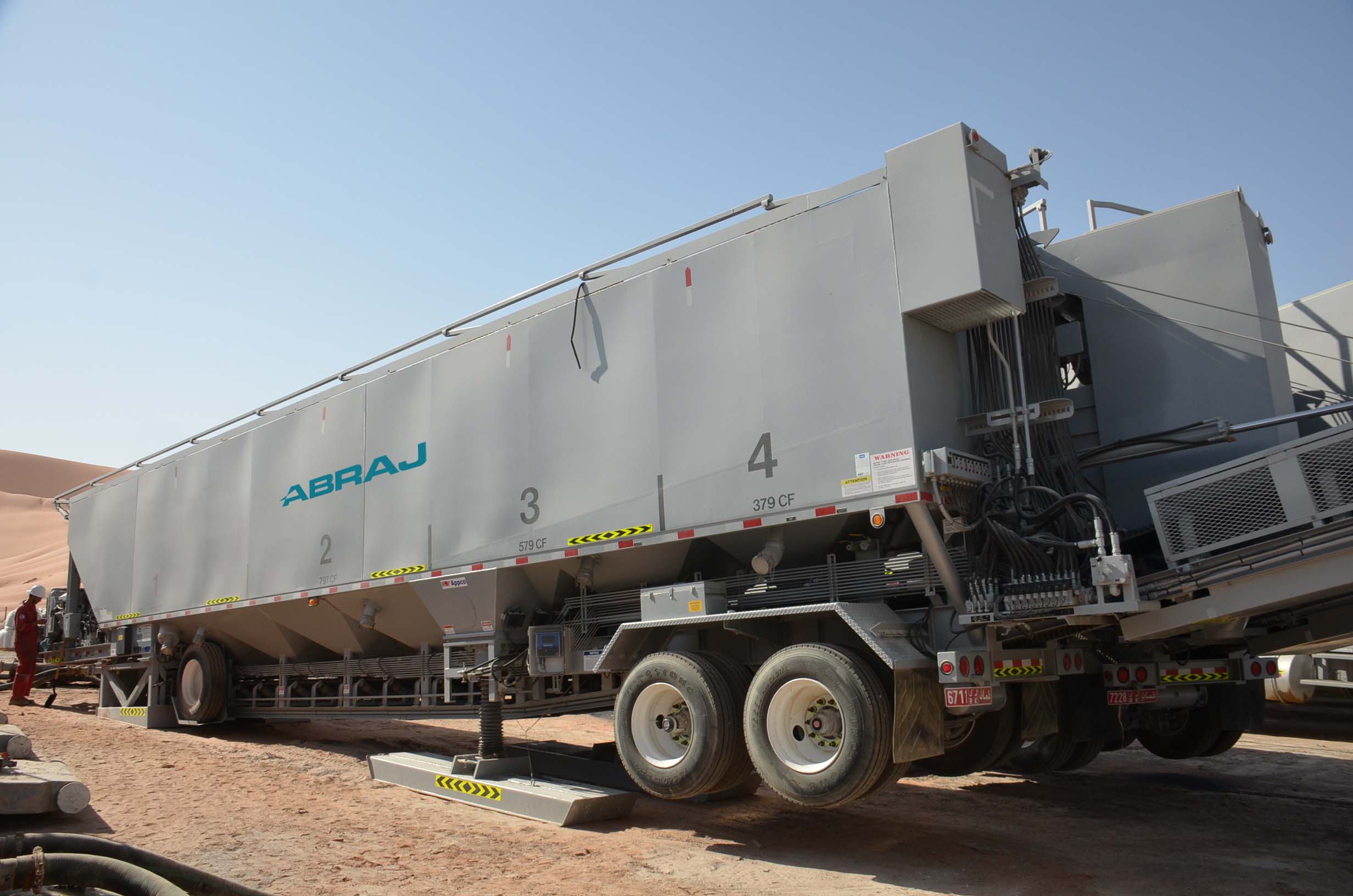

Capability of transferring of Proppant into fluid system for all possible flow rates during fracturing operations.
Storage bin with capability of storing 170 MT of Proppant.
Capability of handling of multiple Proppant sizes.

Stainless steel totes for liquid chemical additive. All tote tanks have permanent and clear volume markers with minimum scale of one (1) gallon
Communication link with control room
Liquid additive pumps, for all chemicals, including backup pumps for Fracturing additives such as crosslinker and breaker.

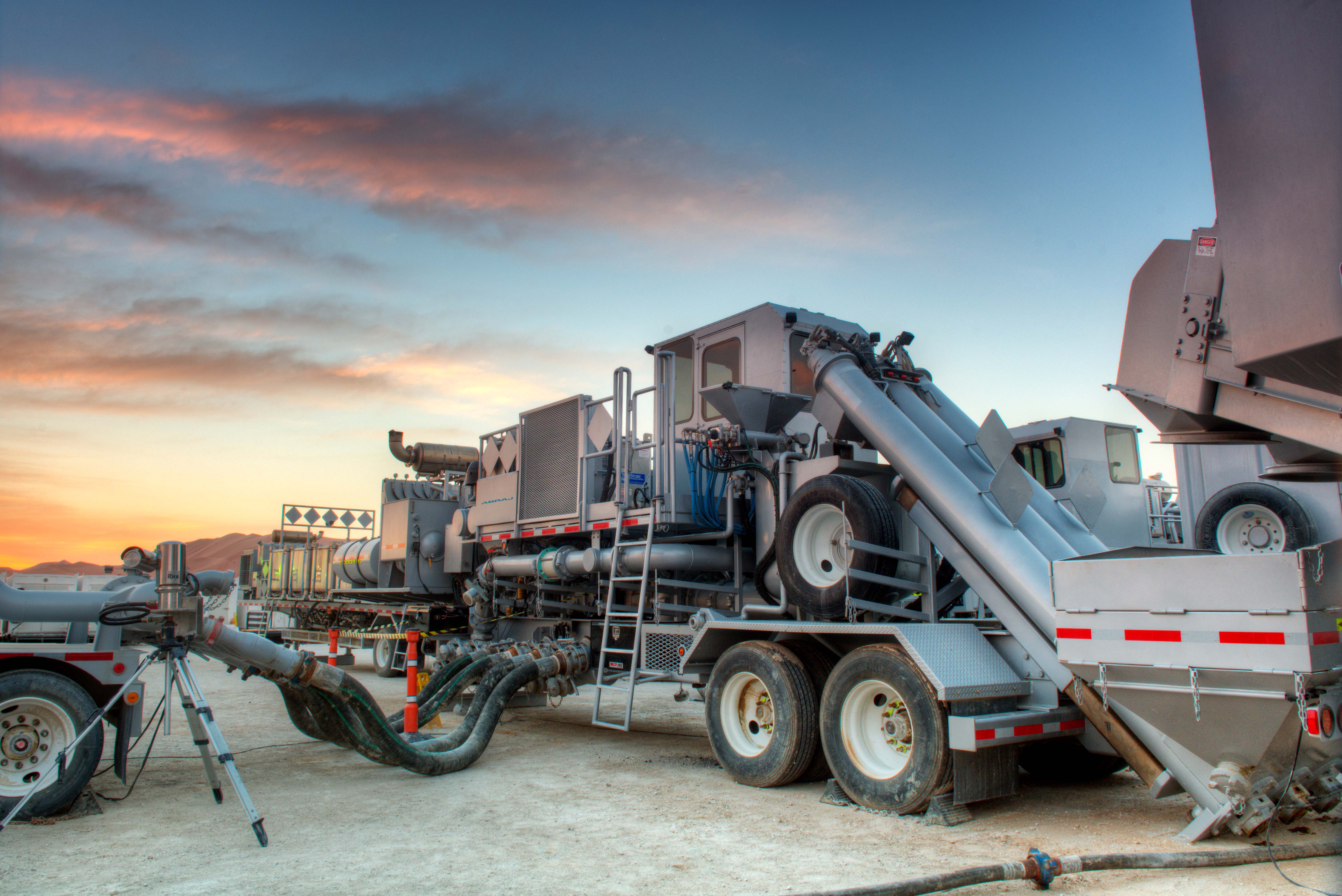

Maximum 130 bpm with 15 ppg
Automatic computer control system. Control system shall allow local control, automatic control and/or remote control in addition to monitor blender functions
Liquid and dry additive system with mass flow meters
Low pressure Densitometer
Six (6) liquid chemical additive systems and one (1) liquid chemical transfer pump. Each liquid add system include a hydraulically driven variable speed chemical pump with a single tube E&H Coriolis style flowmeter.

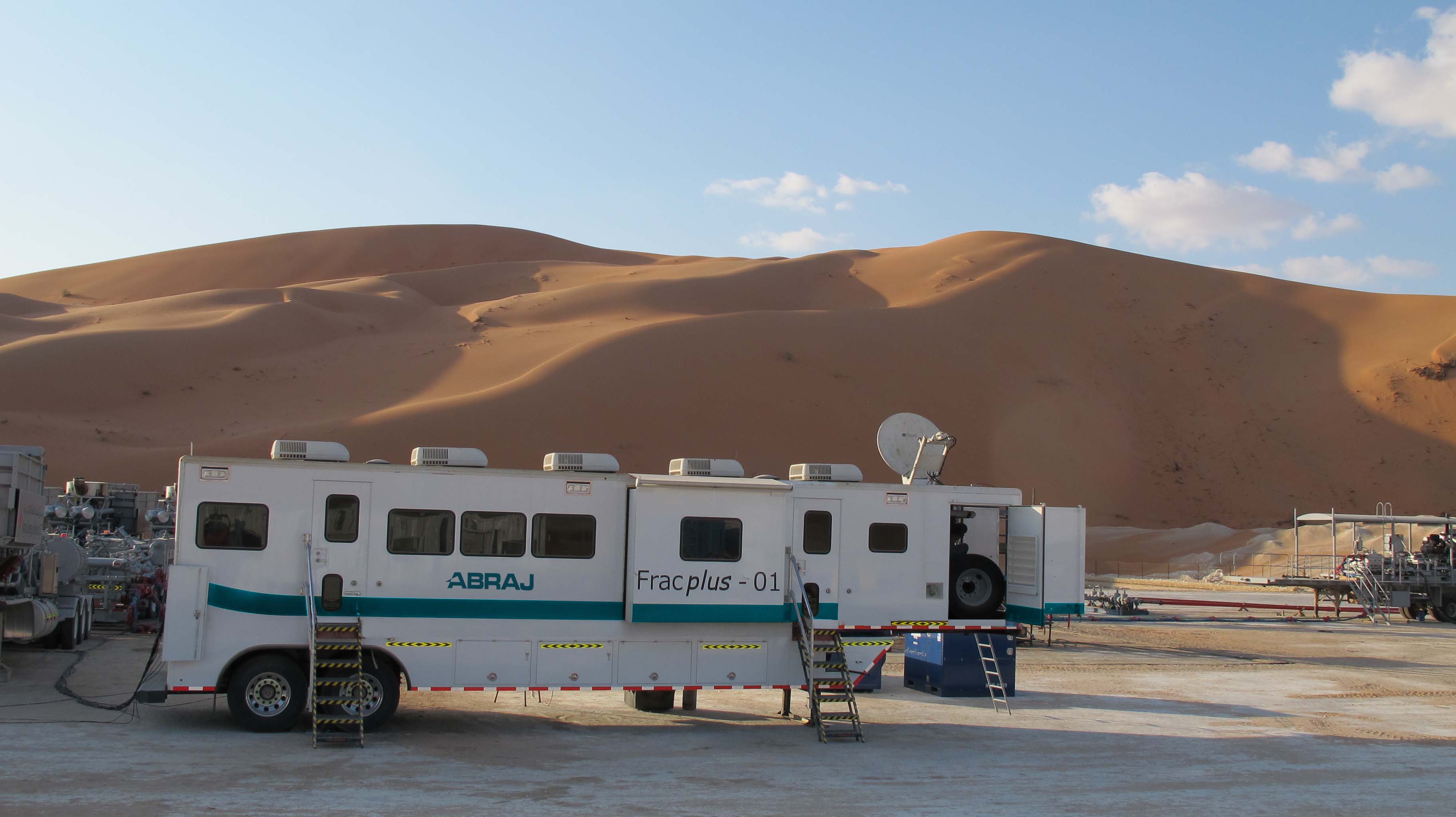

Capability of monitoring and evaluating oil and gas well Hydraulic Fracturing and/or Stimulation treatments
Capability of providing data acquisition during Hydraulic Fracturing and/or Stimulation operations
Battery backup acquisition and display system
Quiet, comfortable and office-like environment, remote controlled pump operator's control console
Convenient storage and access to cables, sensors and electronic gear
Air-conditioning
Sufficient space for Company's Site representatives
Site communication system (radios with hands free headsets)

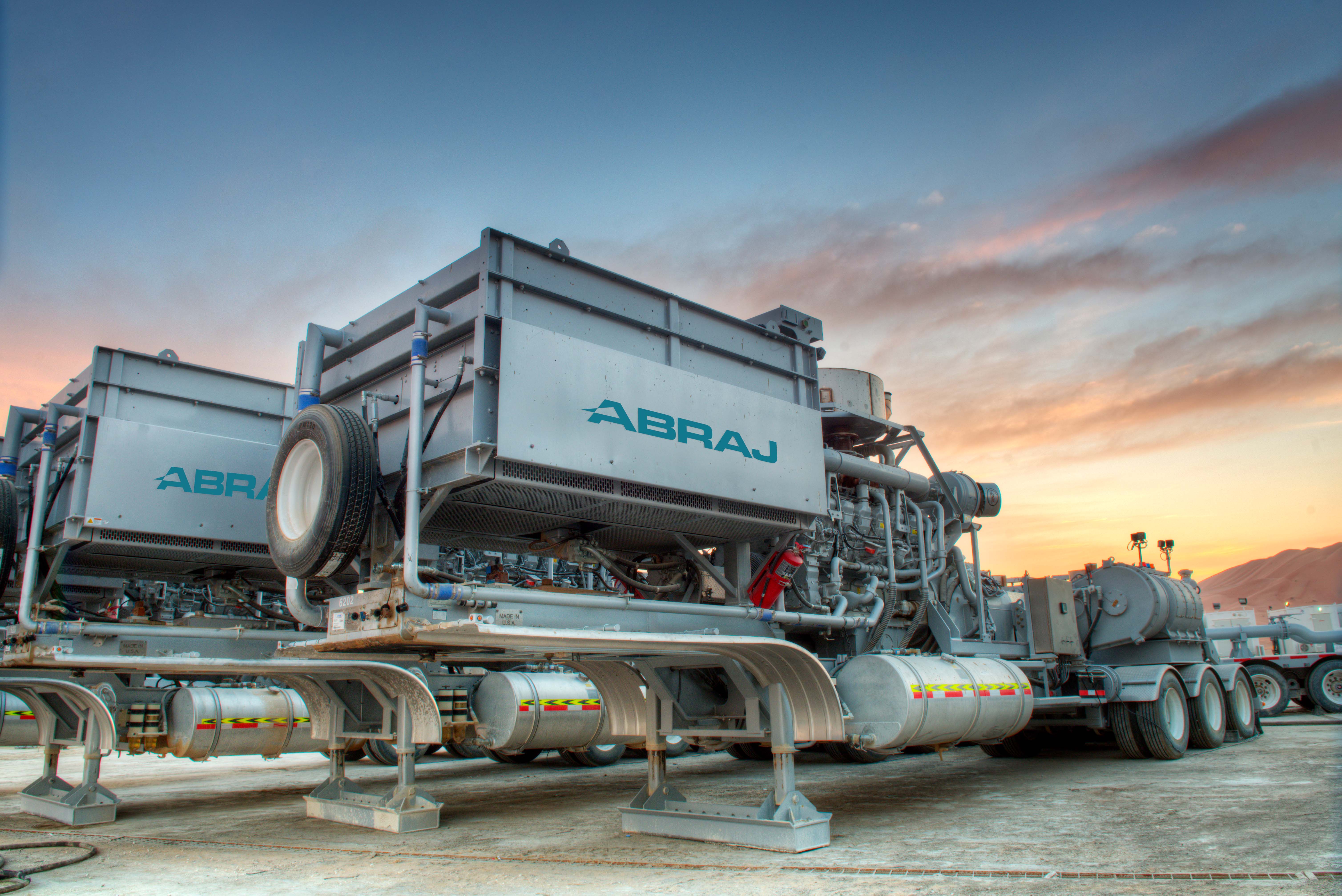

Capable of pumping inhibited acid and other proppant laden stimulation fluids in harsh oilfield environments.
The unit is remotely operated from either a remote control suitcase or a mobile computerized data acquisition and control unit (DATA VAN).
Gardner Denver pump (GD3000™), Triplex with 7.842 to 1 gear ratio, high pressure fluid-end plungers of size 5-in. (76-mm) and with 16.2 bpm max rate at 6000 psi and max working pressure of 17800 psi at 5 bpm.
Hydraulic rigged up system which can help to connect the pumps to the missile in safe and fast way using less man power.
Equipped with a Caterpillar 3512C turbo-charged diesel engine rated 2500 HHP at 1900 RPM (+/- 5%).. It is capable of operating in an ambient temperature range of 0°C to 55°C (32°F – 131°F).
The transmission with 9 speed option and deep first gear ratio creates application flexibility, and allows pumping at lower flow rates and pressure.

Can be installed on various types of wellheads (ie. BOPs, Master valves, Frac stacks)
Corrosion and erosion protection against high proppant concentration and acid
Remote valve system with highly visible open/close indicator
Patented primary and secondary sealing assembly to create an effective seal below surface equipment
Three, four and five port connections are available for high rate jobs.
Rig up and rig down under pressure
15,000 PSI (103.5 MPa) Working Pressure
